Ceragon Product Solutions

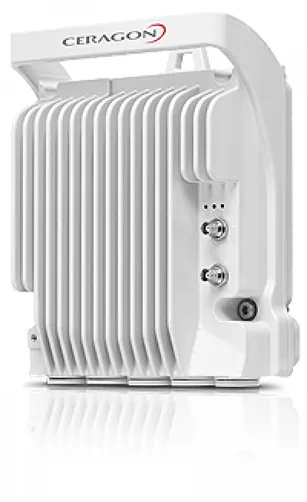

FibeAir IP20C
The FibeAir IP-20C is a highly versatile, compact and all-outdoor wireless backhaul node that suits any network deployment scenario, from aggregation sites to small cell backhaul, at LTE, LTE-Advanced pro and 5G mobile network.
The IP-20C-HP enables 1Gbps radio capacity over a single 28MHz channel or 2Gbps over a single 56MHz channel.

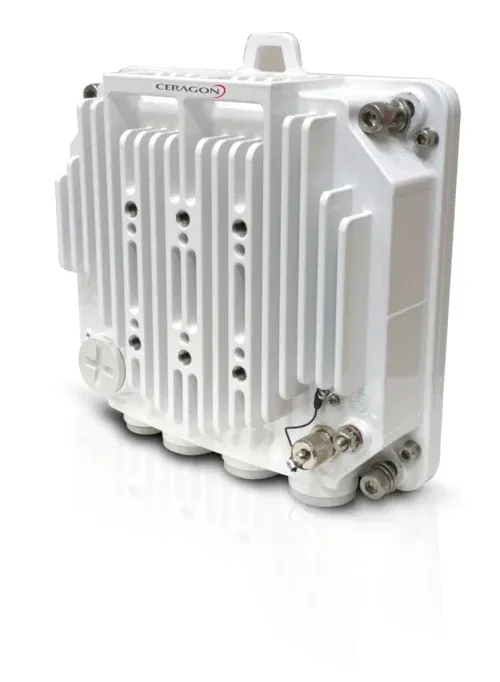

FibeAir IP20E
The FibeAir IP-20E is an ultra-compact, high-capacity, all-outdoor wireless backhaul node that helps you meet your capacity requirements, simplify network deployment and installation, and reduce your spectrum costs. Whether your challenge is connecting high-capacity sites, overcoming microwave spectrum limitations and costs, or simply expanding your LTE or LTE-Advanced network in a metro environment or any other scenario where it is impossible to deploy high-volume, heavy-weight backhaul equipment – Ceragon’s FibeAir IP-20E allows you to achieve your business goals.

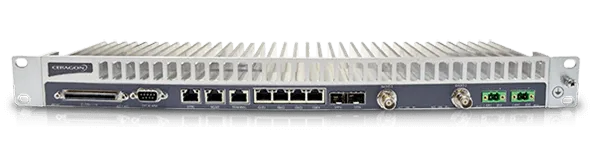

FibeAir IP20G
The FibeAir IP-20G is a split-mount edge node suitable for macrocell and microcell backhaul and delivering up to 1Gbps radio capacity to your transport network. It provides you with the simplicity that comes with deploying a very compact, fixed configuration node, and helps you meet your operational efficiency targets.

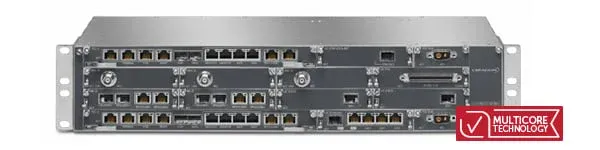

FibeAir IP20N
The FibeAir IP-20N is a highly-flexible aggregation node that delivers multi- Gbps radio capacity at a very large scale. Now available with multicore technology and new radio units, it features high modularity and flexibility, and supports a large number of radio carriers with an exceptionally wide variety of line interfaces via pluggable modules in a wide range of network topologies – making it the preferred node for your transport network’s aggregation sites.
The FibeAir IP-20N operates within the entire microwave and millimeter-wave spectrum, offering high spectral efficiency across licensed and license-exempt frequency bands (4-86GHz). It also supports all high-speed data interfaces (10GE/1GE/FE) and a wide variety of TDM interfaces (T1, OC-3); operates with a wide variety of multicore, standard and high power radios; and accommodates various network configurations including 2x 8+0 and 8x 2+0.

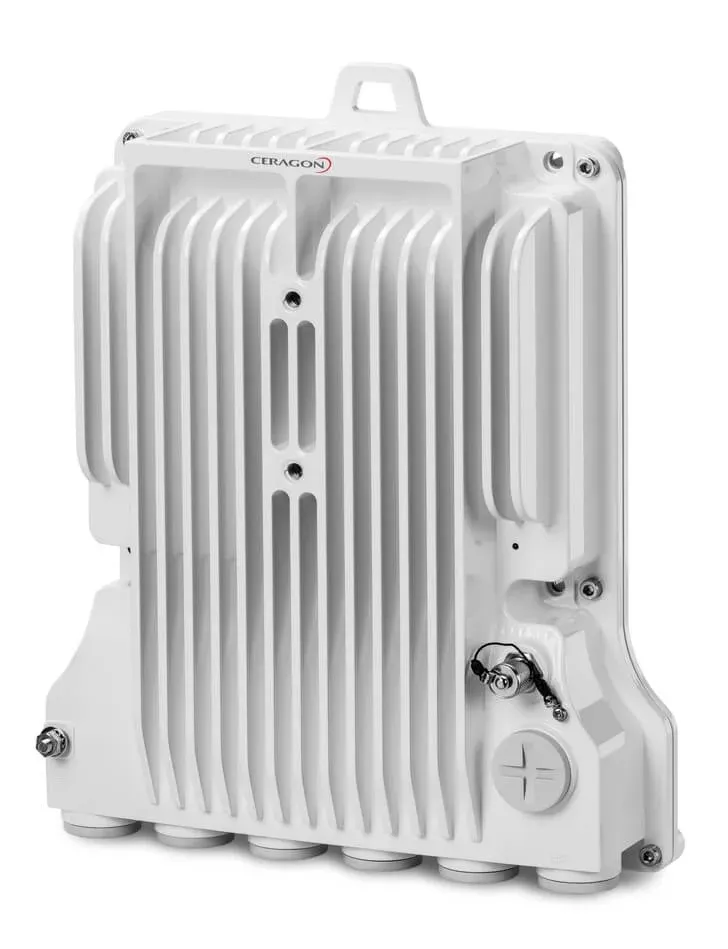

IP50C
The IP-50C is the evolution of the world’s best-selling all-outdoor microwave radio, designed to unify the entire network, from small cells to aggregation sites, onto a single platform. Utilizing multicore technology and layer-1 carrier bonding, this unit can achieve up to 8 Gbps in an all-outdoor 4+0 configuration without requiring an indoor unit. This allows operators to easily upgrade existing installed bases to 4+0, accelerating time-to-market, simplifying site acquisition, and achieving a significant reduction in CAPEX and OPEX.

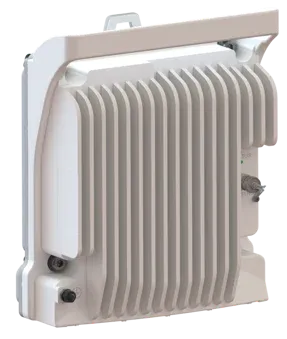

IP50CX
The IP-50CX is the compact microwave radio evolution that offers extreme versatility, allowing the entire network, from small cells to massive aggregation sites, to be based on a single platform, thereby reducing complexity and operational costs. This multicore unit supports the highest channel bandwidth on the market (up to 224 MHz) and ports up to 25 GbE, capable of reaching up to 6.5 Gbps in an all-outdoor 4+0 configuration thanks to layer-1 carrier aggregation, which also makes it easy to upgrade existing installations, simplifying site acquisition and significantly reducing CAPEX and OPEX.

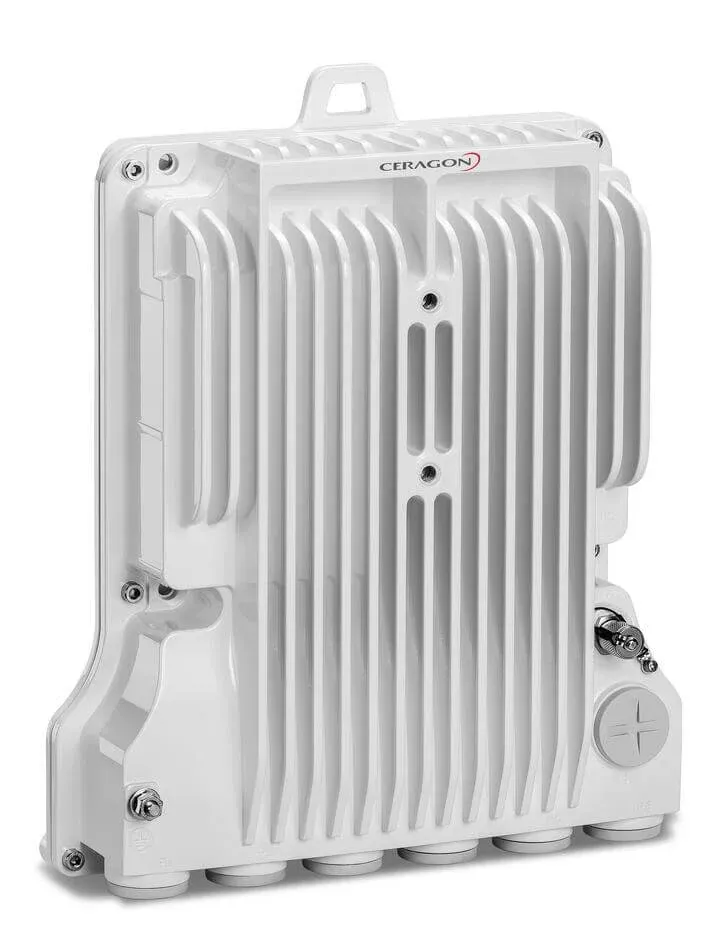

IP50E
The IP-50E universal E-band radio introduces ultra-high capacity of up to 20Gbps to your network, supporting a pay-as-you-grow strategy with up to two units in XPIC configuration. Wherever you need fiber-like capacity for fronthaul, backhaul or wireless access applications, the IP-50E is your cost-efficient, easy-to-deploy fiber-replacement solution.
The IP-50E also allows extended E-band reach with no compromise on availability, thanks to its unique multiband capability. Using layer-1 carrier bonding, the IP-50E enables you to combine this high-capacity carrier with any additional microwave, fiber or leased line connection, thereby insuring your high-priority service offering meets its SLA target.
IP50EX
The IP-50EX family is a powerhouse E-band radio, delivering up to 10 Gbps in 1+0 configuration and up to 20 Gbps with 2+0 XPIC, all in a deceptively small package. Its remarkably small footprint, combined with optional high Tx power, PoE-In, multiband/multi-box optimization, and an optional antenna stabilizer, makes it an excellent choice for applications demanding minimal visibility and a budget-friendly, low total cost of ownership (TCO). The radio features innovative Adaptive Coding Modulation and Bandwidth (ACMB) technology, ensuring hitless, uninterrupted transmission by efficiently adjusting modulation and bandwidth to challenging fading conditions. With its 2 x 25 GbE interfaces, the IP-50EX is a future-proof L2 connectivity solution suitable for diverse networking requirements, from macro site backhaul to small cell connectivity and building-to-building connections, addressing the needs of mobile carriers and private network operators alike.

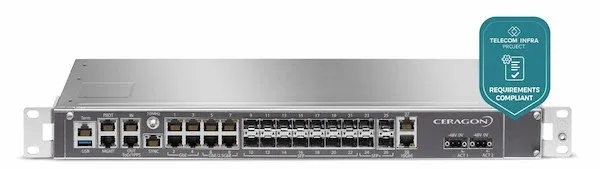

IP50FX
The IP-50FX wireless backhaul router combines a cell site router with radio-aware features that support the IP-50C and IP-50E radios, as well as any Ethernet-connected radio or fiber. Its high switching capacity and wide port density make it an excellent fit for any cell site or aggregation site that requires ultra-high capacity, multi-directional functionality, and switching/routing capabilities.
The IP 50FX utilizes radio-aware networking capabilities, such as layer-1 carrier bonding over Ethernet, SyncE, 1588-TC/BC and ETH-BN.
IP50GP

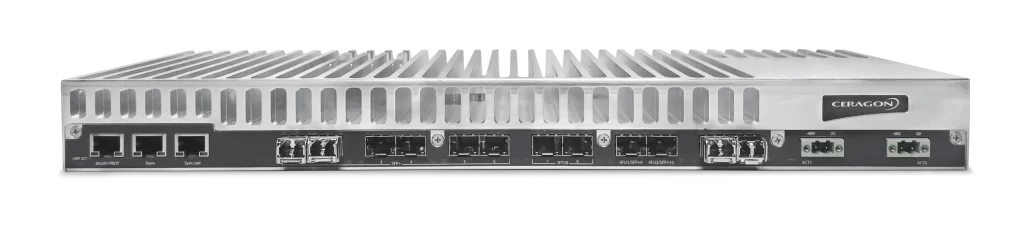

The IP-50GP is a highly-flexible indoor unit (IDU) that delivers multi-Gbps radio capacity. This state-of-the-art, cost-effective platform is designed to elevate network performance, excelling across diverse applications such as deploying a cell site gateway, implementing a split-mount solution for private networks and CSPs/ISPs handling aggregation. Its compact 1RU form factor makes it lightweight and environmentally friendly. With a networking capacity of 198 Gbps, the IP-50GP provides unparalleled performance and flexibility, supporting layer-1 aggregation up to 8+0 with two directions, integrated Carrier Ethernet switching, and multiband support up to 24 Gbps. The system is MEF Carrier Ethernet 2.0 compliant and stands out with extensive interface options, including 2x 1/10/25 GbE ports (SFP28), 6x 1/10 GbE ports (SFP+), and 4x BBI ports. Furthermore, security is a top priority, incorporating payload encryption and secure protocols (HTTPS, TLS, SSH, SNMPv3).
IP50S
The IP-50S can be deployed as a standalone all-outdoor radio or used as an upgrade path to achieve the highest possible capacity of any existing Ceragon or third-party link by utilizing Ceragon’s unique layer-1 carrier bonding. Ceragon’s unique multiband engine allows the combination of any two microwave channels over the air, and significantly enhances the link’s performance by optimizing traffic distribution between the two carriers.
Supported channel bandwidth up to 224MHz and modulation up to 4096QAM at traditional higher bands allow IP-50S to operate with transmission rates up to 2.0Gbps for 1+0 configuration.
